Euroline Steel Windows: Superior Fit and Finish for Your Project

PAINT

We use a paint system that is a multi-part urethane which is applied in a controlled environment and heat-cured for consistent results.

The zinc layer provides the perfect surface for the primer to be applied and the paint is actually absorbed into the surface of the zinc for a great “bite” that will not peel.

The surface produced by the final color coat is resistant to most solvents, and can be applied in the field if touch-ups are needed. (A small paint kit is supplied with every order).

Our paint has excellent UV and fade resistance and is easy to clean. Since it is an ultra-low VOC system, our paint is very environmentally friendly.

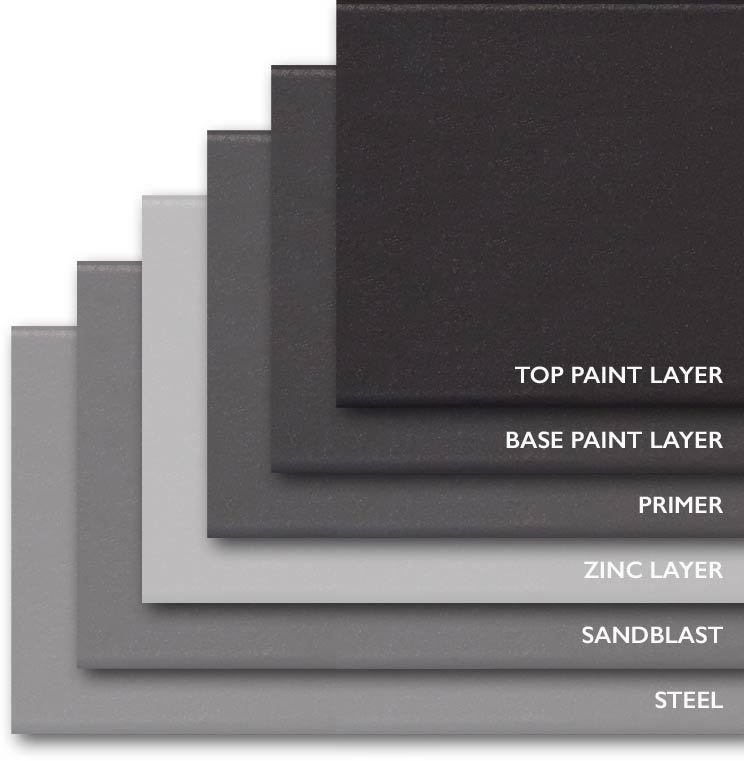

ZINC METALIZATION

We start with a base frame that is crafted from steel.

After fabrication, the steel surfaces are sandblasted and then immediately thermal sprayed or “Zinc Metalized” to protect the steel from corrosion.

Zinc metalizing is similar to hot-dipped galvanizing (both are zinc coatings) however zinc metalizing provides a thicker zinc layer that is more pure, more corrosion resistant and can be alloyed with aluminum for special conditions like coastal locations.

Since zinc metalizing is done by actually melting zinc and applying the molten metal directly to the steel with a special spray gun, the zinc surface produced is a bit rough and suitable for painting (unlike hot dipping). The process does not produce off-gas or require noxious chemicals, and is environmentally safe.

The zinc will oxidize more quickly and the zinc oxides seal the surface immediately so that oxygen cannot reach the steel substrate. These zinc oxides are non-soluble and do not wash off.

The unique properties of this protection can even “heal” minor scratches in the zinc layer and continue to protect the steel substrate.

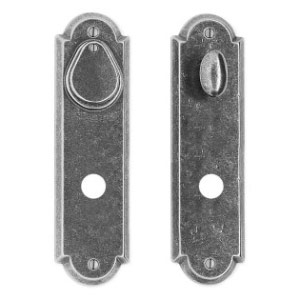

R_E726-E723-Rocky-Mountain---Arched---Tubular-Rosette-Kit

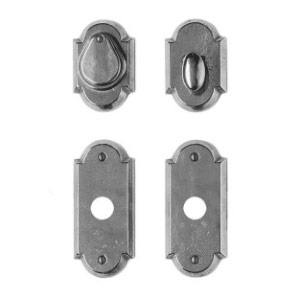

R_E701-Rocky-Mountain---Arched-Rosette-Kit

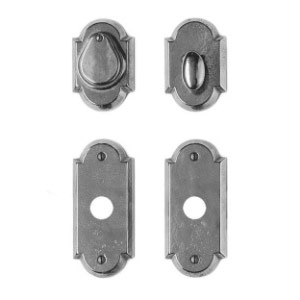

R_E701-Rocky-Mountain---Arched---DB508-Rosette-Kit

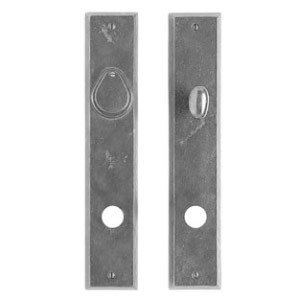

R_E438-E437-Rocky-Mountain---Rectangular--Tubular-Rosette-Kit

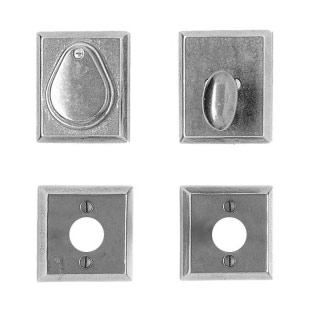

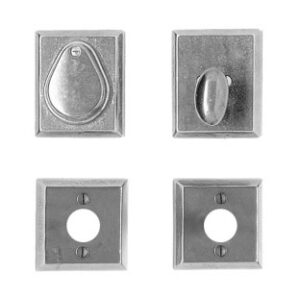

R_E416-Rocky-Mountain---Square---DB507-Rosette-Kit

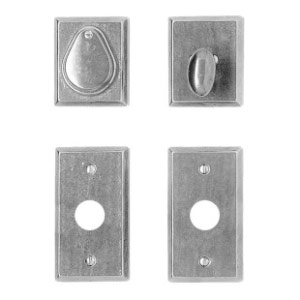

R_E414-Rocky-Mountain---Rectangular---DB202-Rosette-Kit

R_E410-Rocky-Mountain---Rectangular---DB507-Rosette-Kit

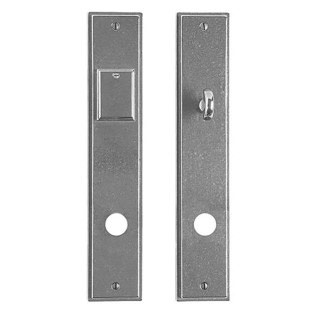

R_E358-E357-Rocky-Mountain---Stepped---Tubular-Rosette-Kit

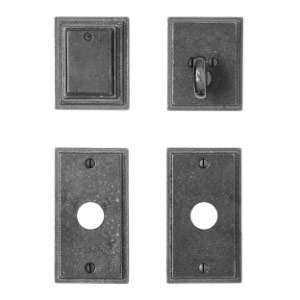

R_E304-Rocky-Mountain---Stepped---DB312-Rosette-Kit

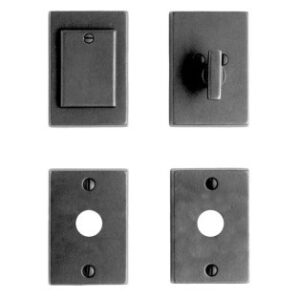

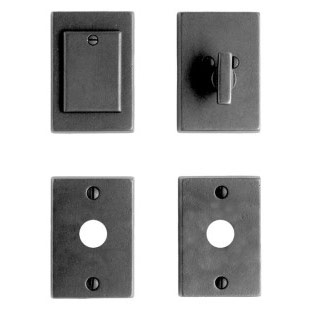

R_E205-Rocky-Mountain---Metro---DB202-Rosette-Kit

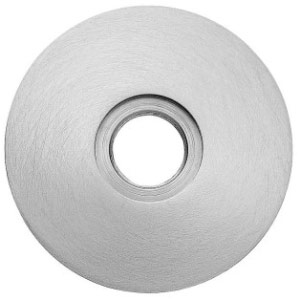

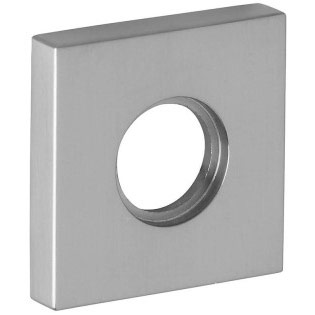

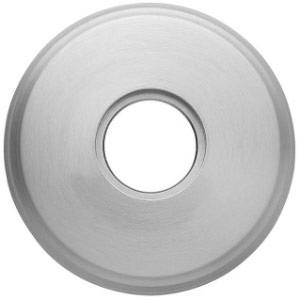

R_5056-Baldwin-Estate---2-Square-Rosette

CASEMENT HINGE OPTIONS

Our windows are equipped with standard barrel hinges, however 4-Bar Hinges create a much different effect from traditional barrel or swing hinges. As the casement or awning is opened, these hinges move the sash away from the jamb creating a space for air to circulate on both sides of the sash. In certain conditions, this can improve air flow where a traditional swing hinge can block breezes from the hinge side.

4-Bar Hinges control the opening to 60 degrees and keep the sash from opening too wide under wind forces. This is especially helpful when a wide casement is specified.

CASEMENTS HARDWARE

Need copy here. Is there any documentation that I can pull from and possibly improve? Need copy here. Is there any documentation that I can pull from and possibly improve? Need copy here. Is there any documentation that I can pull from and possibly improve?Need copy here. Is there any documentation that I can pull from and possibly improve?

Need copy here. Is there any documentation that I can pull from and possibly improve?Need copy here. Is there any documentation that I can pull from and possibly improve? Need copy here. Is there any documentation that I can pull from and possibly improve?Need copy here. Is there any documentation that I can pull from and possibly improve?

FIT AND FINISH

PAINT

CARBON BLACK

EURO BRONZE

PHANTOM GRAY METALLIC

SPRING GRAY

ZINC METALIZATION

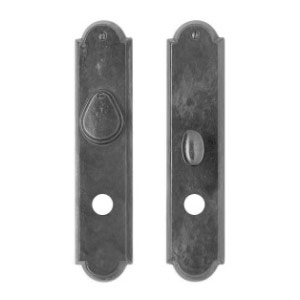

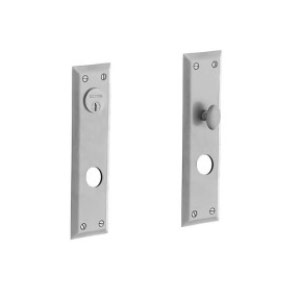

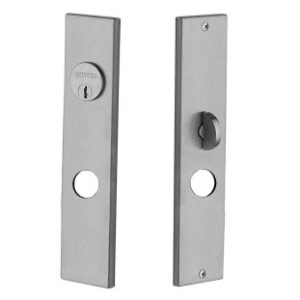

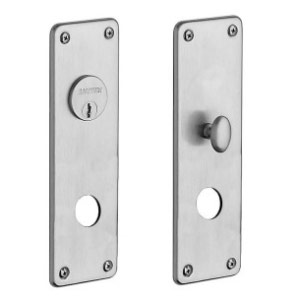

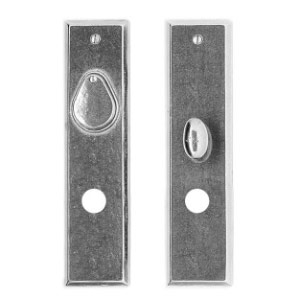

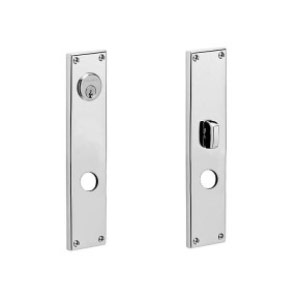

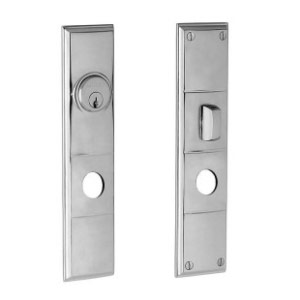

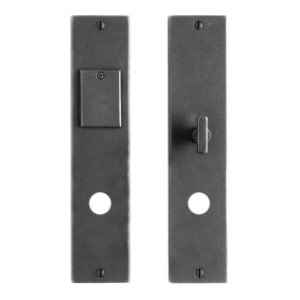

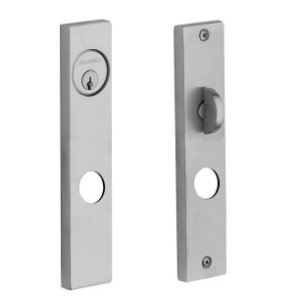

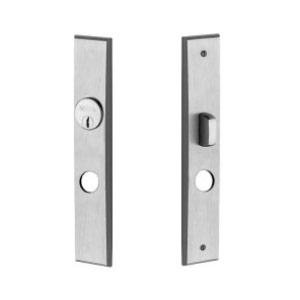

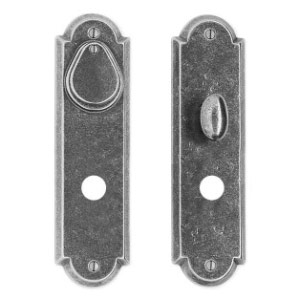

HARDWARE ESCUTCHEON

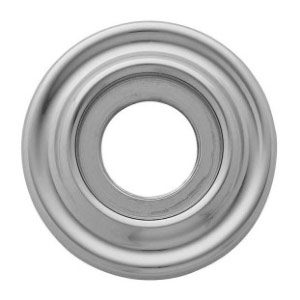

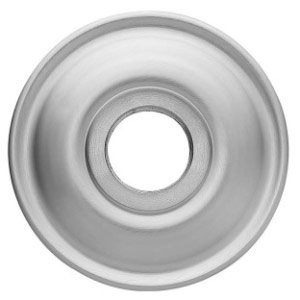

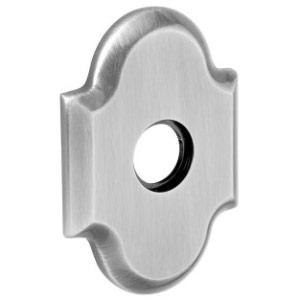

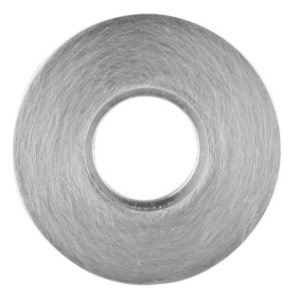

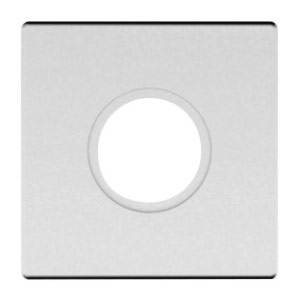

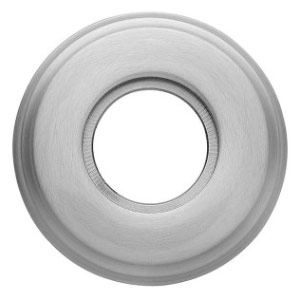

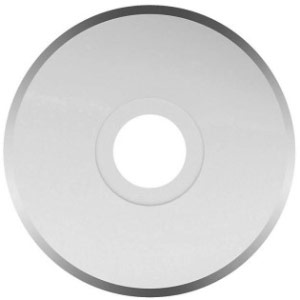

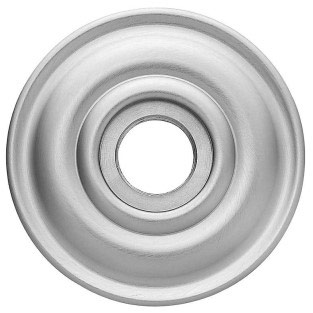

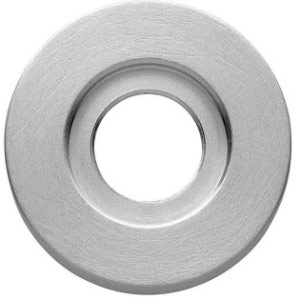

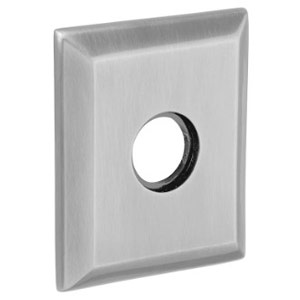

ROSETTE HARDWARE

CASEMENT HINGE OPTIONS

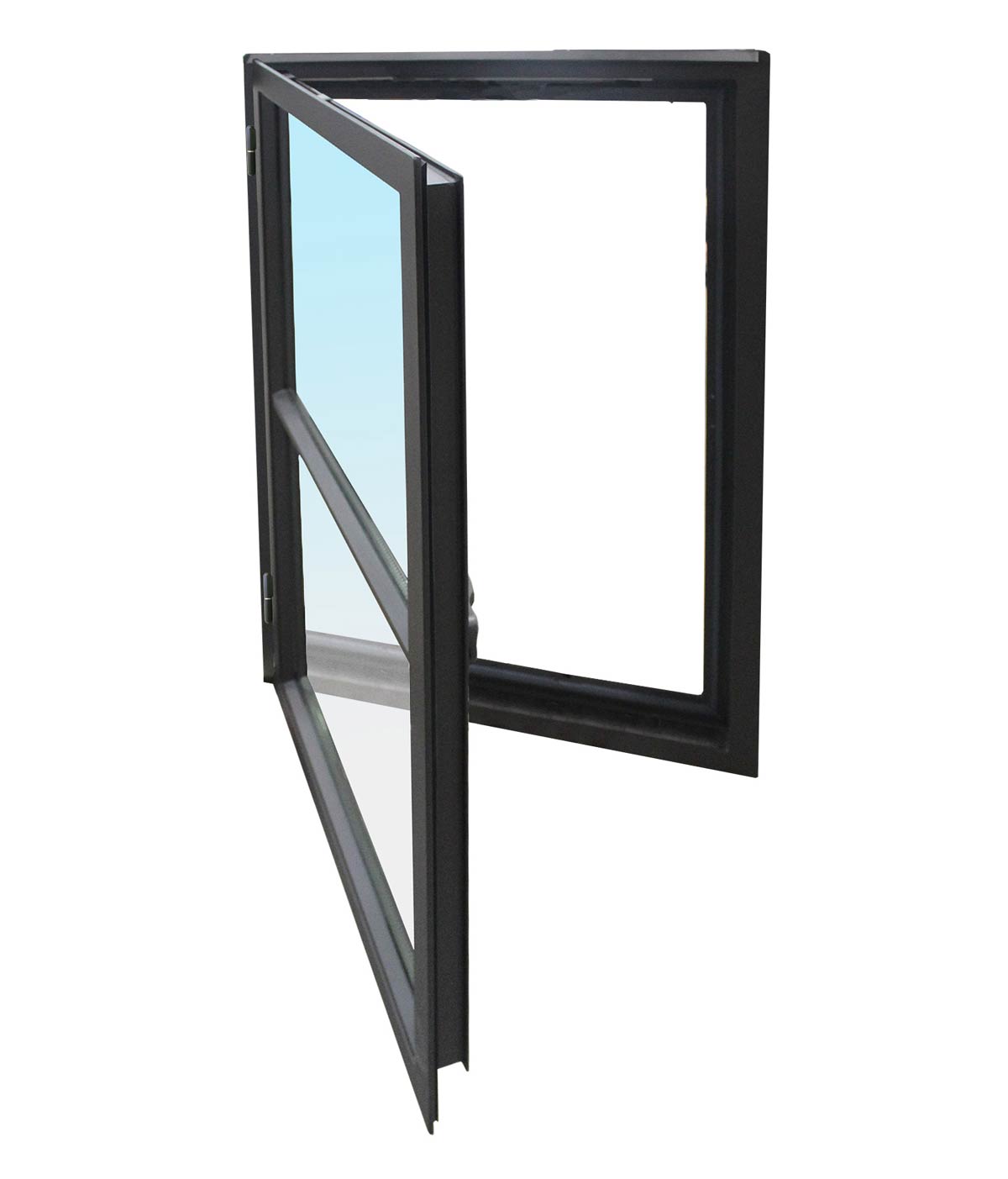

True Steel Barrel Hinge

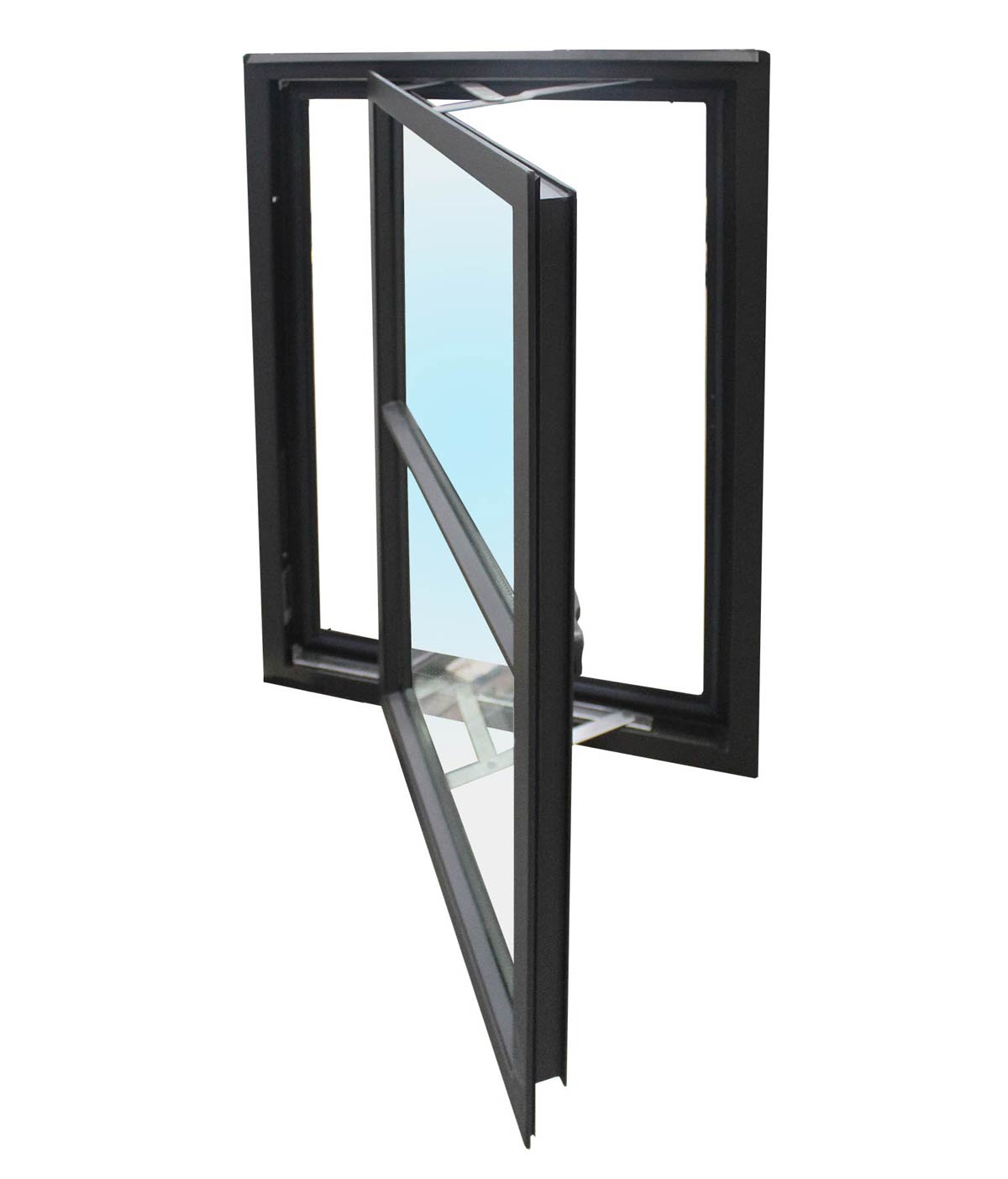

True Steel 4-Bar Hinge

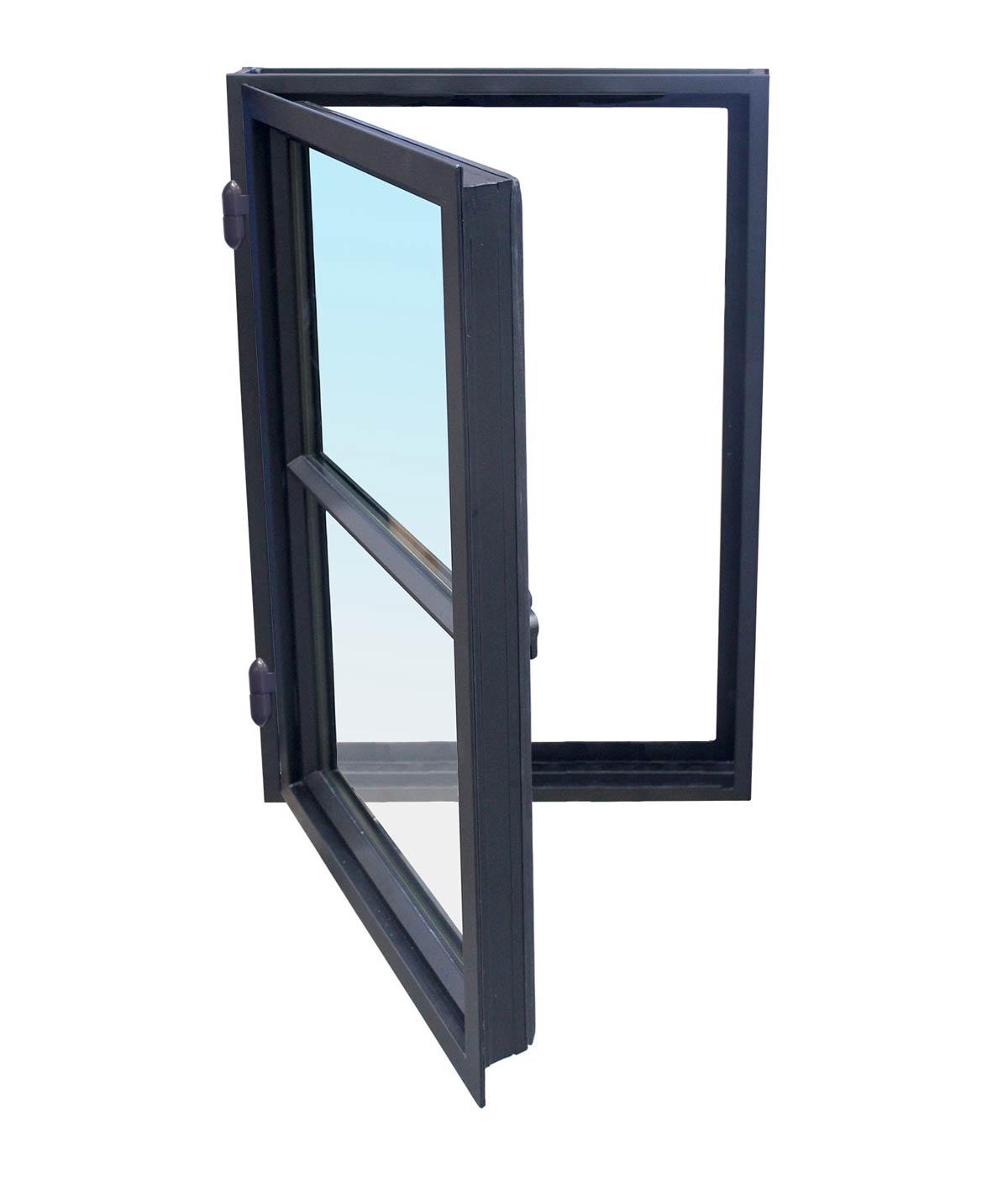

Thermal Steel Barrel Hinge

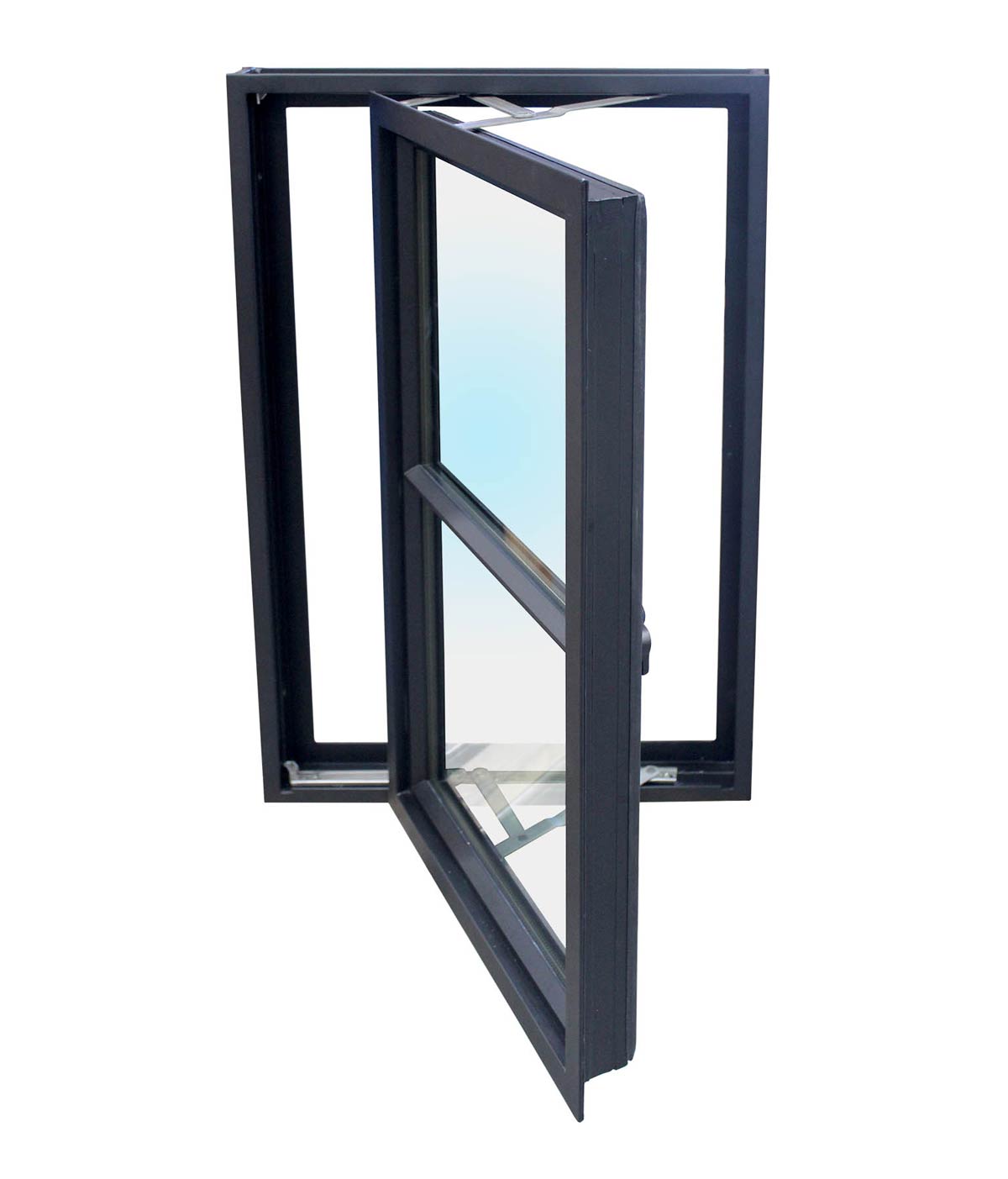

Thermal Steel 4-Bar Hinge

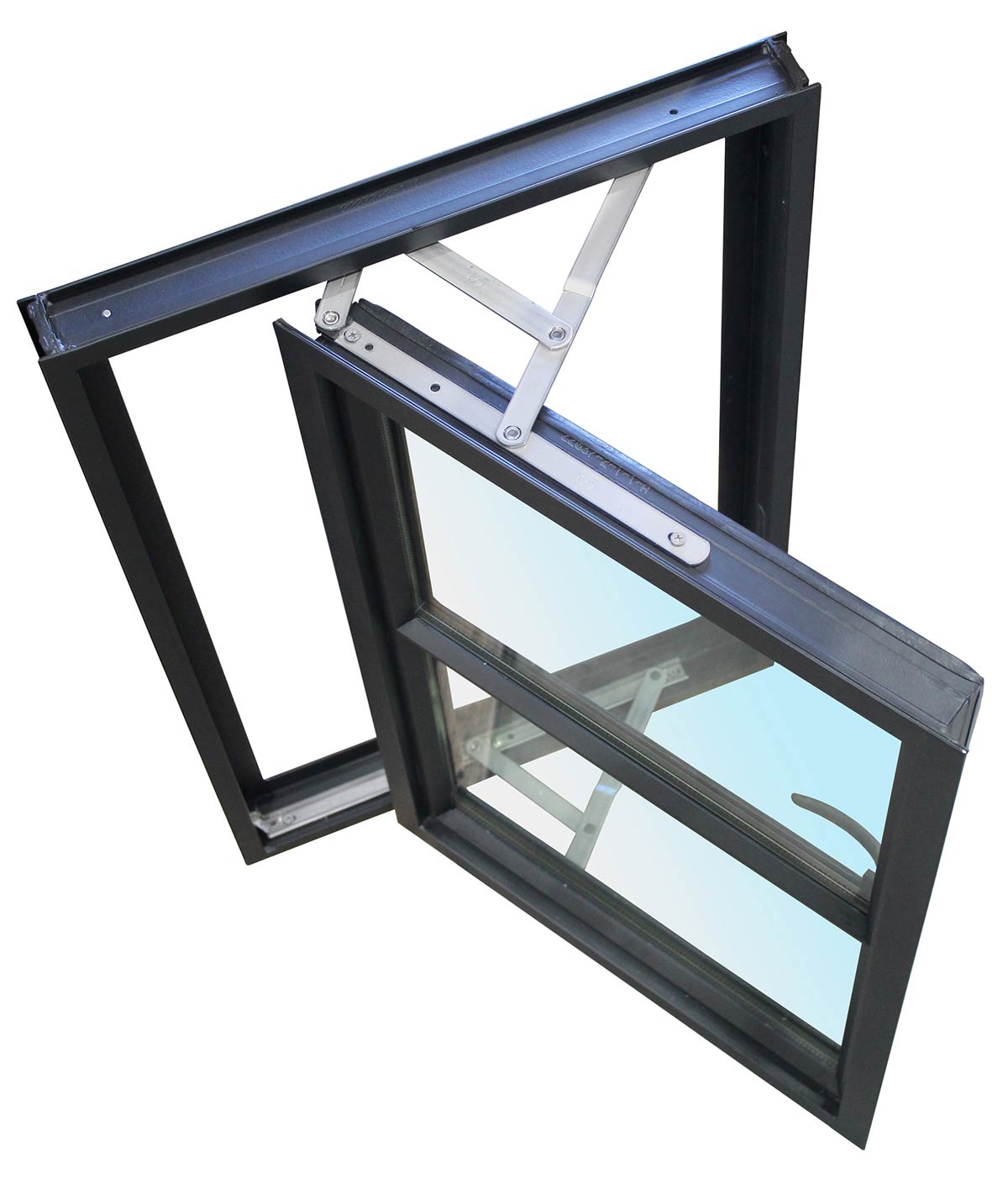

Thermal 4-Bar Top View

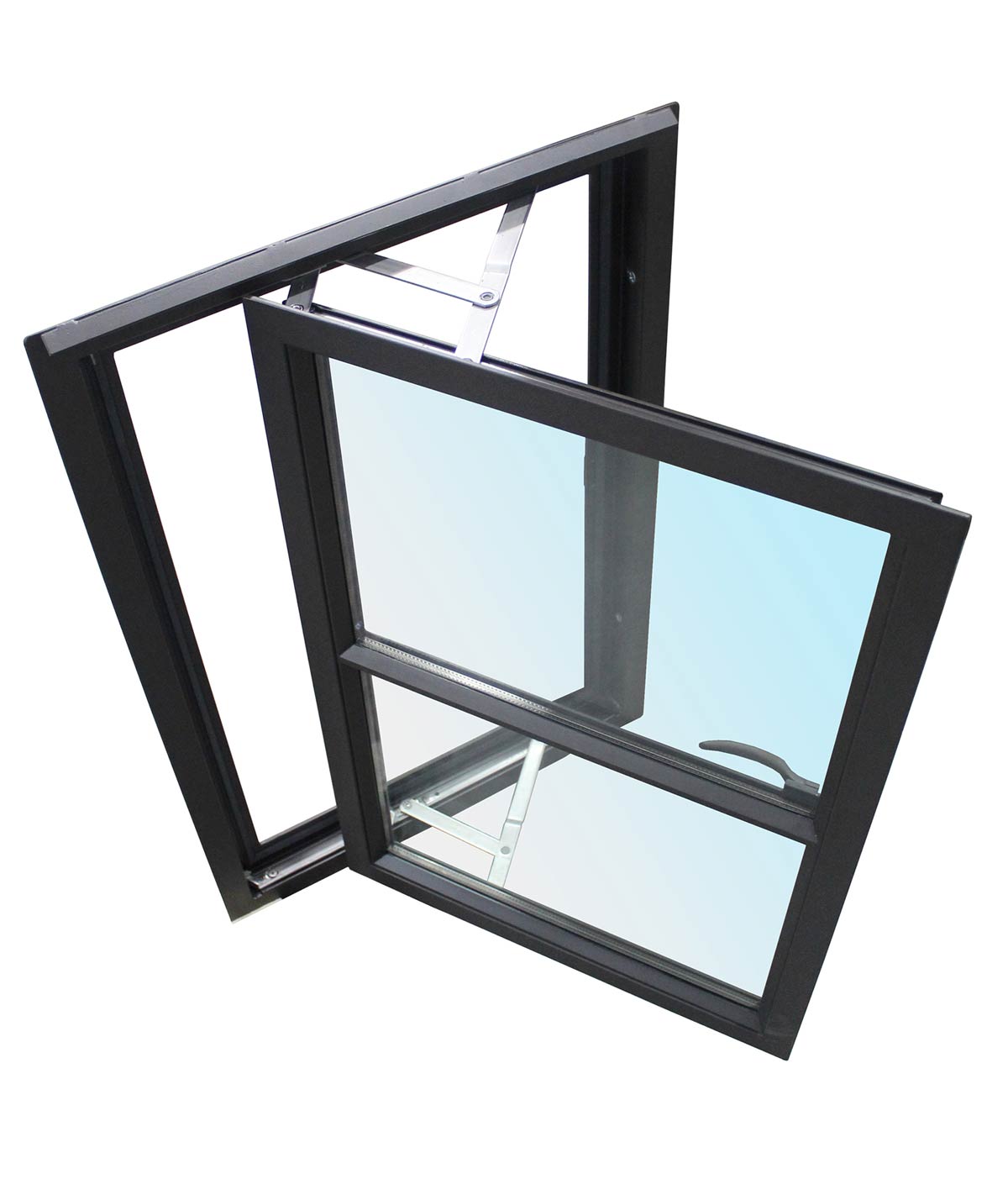

True Steel 4-Bar Top View

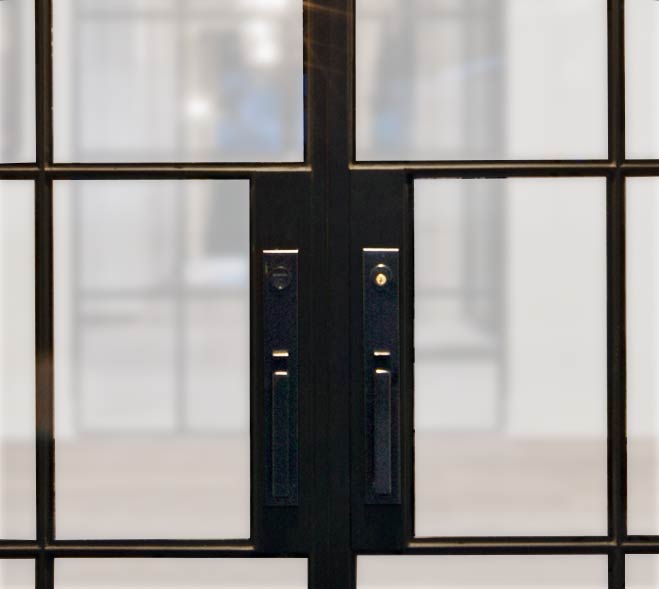

CASEMENT AND DOOR HARDWARE

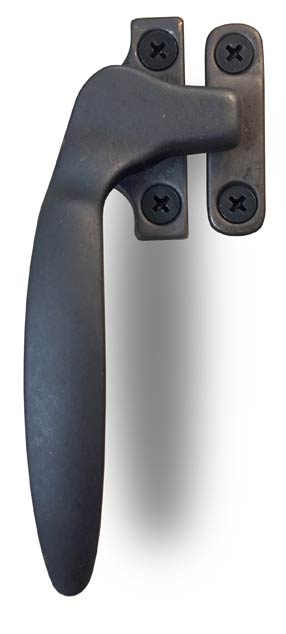

CURVED LEVER

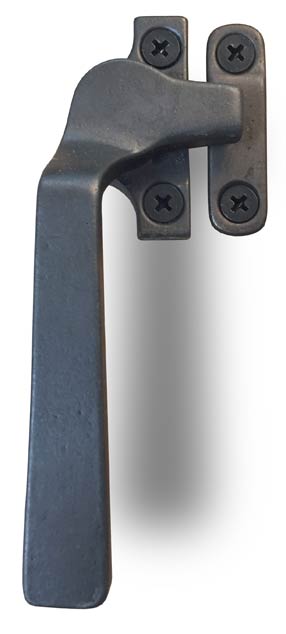

SQUARED LEVER

CURVED LEVER

SQUARED LEVER

CASEMENTS HARDWARE
